Examples

Please visit our Google Colab Demo to check out the full example .

Running Workflow

The following snippet is an example of creating a dataset instance for TARexp. For scikit-learn rankers, the structure of the dataset is bascially a sparse scipy matrix for the vectorized dataset and a list or an array of binary labels with the same length of the matrix.

from sklearn import datasets
import pandas as pd
rcv1 = datasets.fetch_rcv1()
X = rcv1['data']
rel_info = pd.DataFrame(rcv1['target'].todense().astype(bool), columns=rcv1['target_names'])
ds = tarexp.SparseVectorDataset.from_sparse(X)

The following snippet defines a set of componets to use for a workflow,

setting = component.combine(component.SklearnRanker(LogisticRegression, solver='liblinear'),
                            component.PerfectLabeler(),
                            component.RelevanceSampler(),
                            component.FixedRoundStoppingRule(max_round=20))()

And to declare a workflow, simply put in your dataset, setting, and other parameters to the workflow.

workflow = tarexp.OnePhaseTARWorkflow(
    ds.set_label(rel_info['GPRO']),
    setting,
    seed_doc=[1023],
    batch_size=200,
    random_seed=123
)

And finally, you can start executing the workflow by running it as an iterator. We also support everything from ir-measures as evaluation metrics.

recording_metrics = [ir_measures.RPrec, tarexp.OptimisticCost(target_recall=0.8, cost_structure=(25,5,5,1))]
for ledger in workflow:
    print("Round {}: found {} positives in total".format(ledger.n_rounds, ledger.n_pos_annotated))
    print("metric:", workflow.getMetrics(recording_metrics))

Besides standard IR evaluation metrics, we also implement OptimisticCost as cost-based evaluation metrics in TARexp. Please refer to `this paper <https://arxiv.org/abs/2106.09866`__ for more information and consider citing it if you use this measurement.

Running Experiments

TAR Experiments

tarexp.TARExperiment is a wrapper and dispatcher for running TAR experiments with different settings. It construct all combinations of the input settings and dispath each TAR run to execute.

The following command defines a set of 6 TAR runs which consists of 3 topics and each has 2 runs with batch size 200 and 100.

exp = tarexp.TARExperiment('./my_tar_exp/', random_seed=123, max_round_exec=20,
                            metrics=[RPrec, P@10, tarexp.OptimisticCost(target_recall=0.8, cost_structure=(1,10,1,10))],
                            tasks=tarexp.TaskFeeder(ds, rel_info[['GPRO', 'GOBIT', 'E141']]),
                            components=setting,
                            workflow=tarexp.OnePhaseTARWorkflow, batch_size=[200, 100])

To start running the experiment, please use the following command which will execute with single processor and resume from any crash runs if exist in the output directory.

results = exp.run(n_processes=1, resume=True, dump_frequency=10)

Testing Stopping Rules

TARexp also encourages experiments on stopping rules. We have built-in a number of stopping rules in the package and continuing to update them.

The following snippet is an exmaple for running a replay experiment based on a set of existing TAR runs with a list of stopping rules defined in stopping_rules arguments.

replay_exp = tarexp.StoppingExperimentOnReplay(
                    './test_stopping_rules', random_seed=123,
                    tasks=tarexp.TaskFeeder(ds, rel_info[['GPRO','GOBIT', 'E141']]),
                    replay=tarexp.OnePhaseTARWorkflowReplay,
                    saved_exp_path='./my_tar_exp',
                    metrics=[tarexp.OptimisticCost(target_recall=0.8, cost_structure=(1,1,1,1)),
                            tarexp.OptimisticCost(target_recall=0.9, cost_structure=(1,1,1,1))],
                    stopping_rules=[
                        component.KneeStoppingRule(),
                        component.BudgetStoppingRule(),
                        component.BatchPrecStoppingRule(),
                        component.ReviewHalfStoppingRule(),
                        component.Rule2399StoppingRule(),
                        component.QuantStoppingRule(0.4, 0),
                        component.QuantStoppingRule(0.2, 0),
                        component.QuantStoppingRule(0.8, 0),
                        component.CHMHeuristicsStoppingRule(0.8),
                        component.CHMHeuristicsStoppingRule(0.4),
                        component.CHMHeuristicsStoppingRule(0.2),
                    ]
            )
stopping_results = replay_exp.run(resume=True, dump_frequency=10)

Visualization

TARexp also provide visualization tools for TAR runs.

createDFfromResults creates a pandas DataFrame from either the result variable

df = tarexp.helper.createDFfromResults(results, remove_redundant_level=True)

Or the output directory

df = tarexp.helper.createDFfromResults('./my_tar_exp', remove_redundant_level=True)

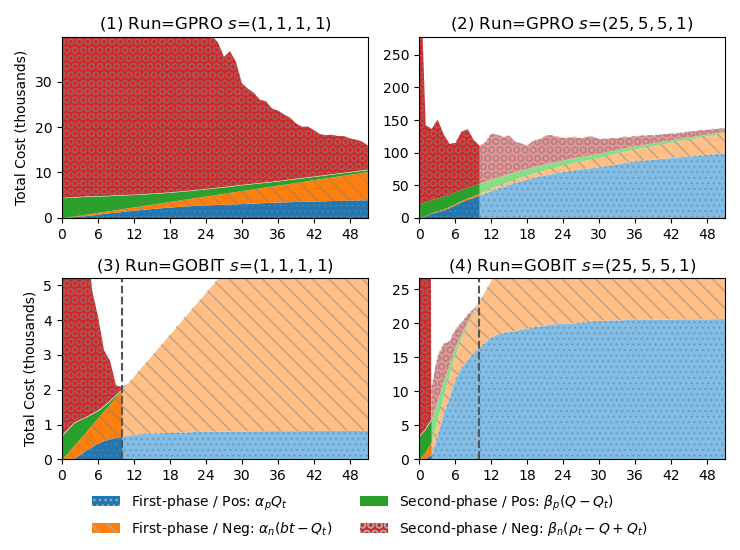

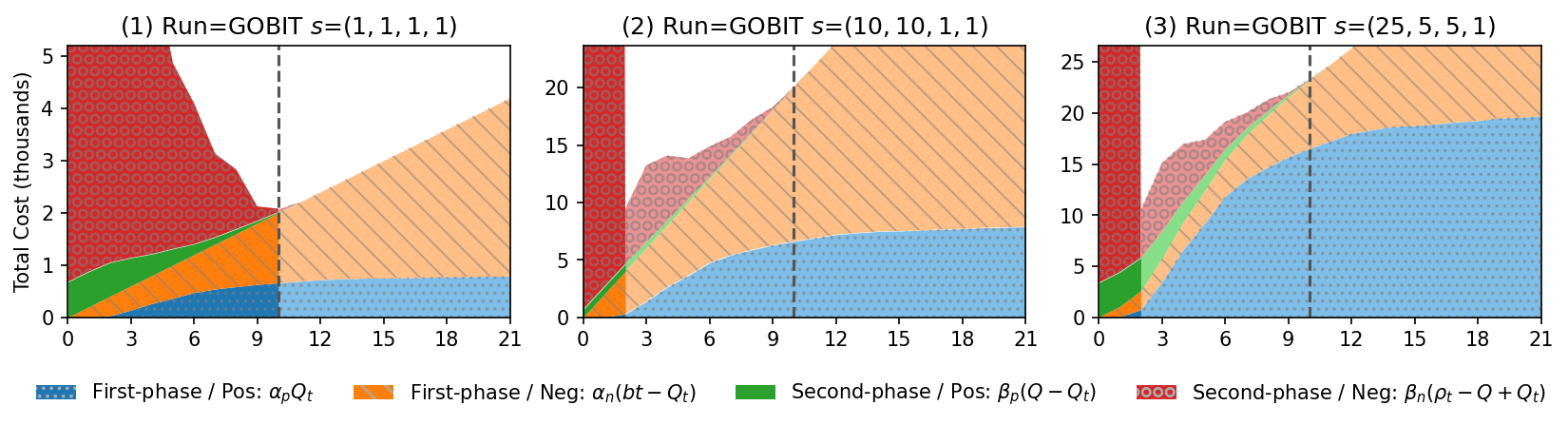

And the following command provides you the cost dynamic graph introduced in this paper.

tarexp.helper.cost_dynamic(
    df.loc[:, 'GOBIT', :].groupby(level='dataset'),
    recall_targets=[0.8], cost_structures=[(1,1,1,1), (10, 10, 1, 1), (25, 5, 5, 1)],
    with_hatches=True
)

Alternatively, you can also create this graph by using a command line interface

python -m tarexp.helper.plotting \
    --runs GPRO=./my_tar_exp/GPRO.61b1f31a0a29de634939db77c0dde383/  \
            GOBIT=./my_tar_exp/GOBIT.ae86e0b37809cb139dfa1f4cf914fb9b/  \
    --cost_structures 1-1-1-1 25-5-5-1 --y_thousands --with_hatches
